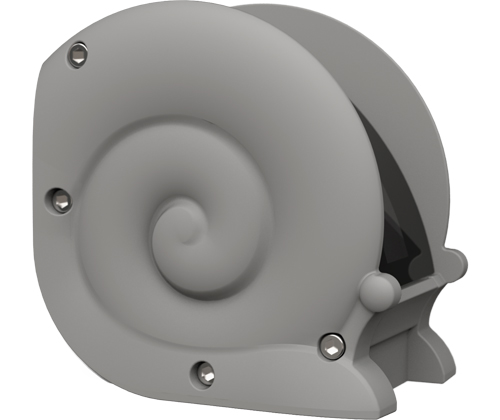

Special Light EXC-T110ABL

EXC-T110ABLSnail Window Wall washer light are a single  color  LED light with extruded aluminum alloy housing, which are designed for window lighting by EXC-T110ABL LED. With Unique appearance design, mainly used for Special area lighting light window, lighting up the whole window, to create special lighting effect.

Specification Optical Parameters of Special Light EXC-T110ABL

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: W(2200K-6500K), RGB, etc

  • Beam Angle: 120degree, Open beam and other angles optional

  • Source Life: 50,000h


Electrical Parameters of Special Light EXC-T110ABL

  • Working Voltage: DC 24V

  • Rated Power: Maximum 3W


Control Parameters of Special Light EXC-T110ABL

  • Control Method: DMX512, ON/OFF

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of Special Light EXC-T110ABL

  • Shell Material: High Strength Aluminum

  • Surface Color: Black&White,Other color optional

  • Structure Size: 110mm x 110mm x 75mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 0.7kg


Environmental Parameters of Special Light EXC-T110ABL

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 65°C

  • Protection rating: IP66

  • Application environment: Outdoor
