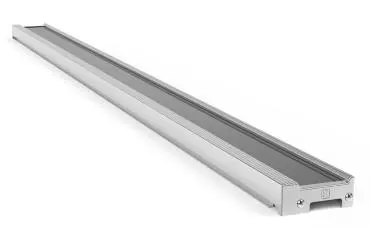

Outdoor Linear Light Contour EXC-U60ADB0

EXC-U60ADB0 full color series product are compact and invisible SMD LED linear light with aluminum shell for outdoor landscape decoration. The fixture can integrate entirely with the building, not affect the building appearance in daytime and show wonderful lighting effect at night. EXC-U60ADB0 can be applicable for super large area displaying or outline the building. It also can be used to decorate facade inside and outside, also reinforce the normal lighting function.


Features

  • Very compact design, only 23mm thickness.

  • Invisible design concept, combine with building very well

  • Aluminum alloy lamp body with low thermal resistance path heat dissipation design

  • Outdoor lightning protection and electrostatic discharge (ESD) protection design

  • Design of top hanging line, simple and convenient installation;

  • All aluminum metal, ultra-thin design, high - grade, graceful structure;


Specification

Basic Specifications

Color Range

W(2200K-6500K), RGB

Working Voltage

DC24V

Max. Power Consumption

12W, 15W

Light Source

48, 60 pcs SMD LEDs

LED chip Brand

Optional(Cree, OSRAM, Lumileds, Epistar, etc...)

CRI

80

Control

DMX512, ON/OFF

Segment

1(W), 8(RGB)

Source Life

50,000 h

Housing

High strength aluminum alloy

Cover

Acrylic

Weight

1.12Kg

Working Temperature

-40°C to 60°C

Storage Temperature

-40°C to 70°C

Protection Rating

IP66

Efficiency flux

20LM/W(White), 10LM/W(RGB)

Beam Angle

≥110°

Host Controller

EXC-5200

Slave Controller

EXC-2905T1

Signal Cable

EXC-LED outdoor special cable
