Controller SG1008

The switch is an eight-port Gigabit Ethernet switch that provides seamless connectivity for 10Mbps Ethernet, 100Mbps Fast Ethernet, and 1000Mbps Ethernet with up to 2000Mbps per port and is ideal for improving departmental and workgroup performance.

10 / 100 / 1000Mbps Adaptive RJ45 port with 10Mbps, 100Mbps, 100 M b p s or 1000Mbps, autoflip (Auto MDI / MDIX) functionality, each port corresponding to a Link / Act light.Each of the three working modes, standard exchange, VLAN isolation and network cloning, are provided to adapt to different network environments.

System Feature

  • Supports IEEE 802.3 10Base-T Ethernet IEEE, 802.3i 10BASE-T Ethernet IEEE 802.3u, 100Base-TX Fast Ethernet IEEE 802.3ab, 1000Base-X Gigabit Ethernet IEEE 803.3x, Traffic Control CSMA / CD Ethernet;

  • Supports packet forwarding rate: 10Base-T: 14881pps / port, 100Base-TX: 148810pps / port, 1000Base-T: 1488095pps / port

  • The power supply system shall take necessary measures to resist power grid interference. The switch shall be far away from high frequency, high power and high current equipment, such as wireless transmitting pad, and the electromagnetic shielding measures shall be taken if necessary

  • Dust removal regularly to keep the indoor air clean; confirm that the equipment is well grounded;

  • Ensure that the power socket maintains good earth contact after installation

  • Wiring should to avoid internal lightning induction

  • Outdoor wiring, the signal lightning protection device is recommended;

  • switch Ethernet port Auto MDI / MDIX feature is turned on by default;

  • When the switch is connected to a workstation, server, router, or other Ethernet device, the network cable length shall not be greater than 100 meters of Ethernet equipment;

Specification

Basic Parameters

Size

209mm×126mm×26mm (L×W×H)

Power

100-240V~ 50/60Hz

Support

IEEE 802.3 10Base-T

IEEE 802.3i 10BASE-T

IEEE 802.3u 100Base-TX

IEEE 802.3ab 1000Base-X

IEEE 803.3x

CSMA/CD Ethernet

Transmission Speed

The Ethernet was 10Mbps half-duplex and 20Mbps full-duplex

Fast Ethernet Speed Ethernet 100Mbps half-duplex, 200Mbps full-duplex

Gigabit Ethernet 2,000 M b p s full-duplex

Network Media

10Base-T: Class 3 or above UTP / STP (100m)

100Base-TX: Class 5 or above UTP / STP (100m)

1000Base-T: Super Class 5 or Class 6 UTP / STP (100m)

Indicator

PWR、Link/Act

Transmission Method

Store

Package forwarding rate

10Base-T: 14881pps/

100Base-TX: 148810pps/

1000Base-T: 1488095pps/

Working Condition;

Working Temperature

0°C~40°C

Storage Temperature

-40°C~70°C

Working Humidity

0% - 90%RH

Eleactric ;

Working Voltage

100-240V~ 50/60Hz

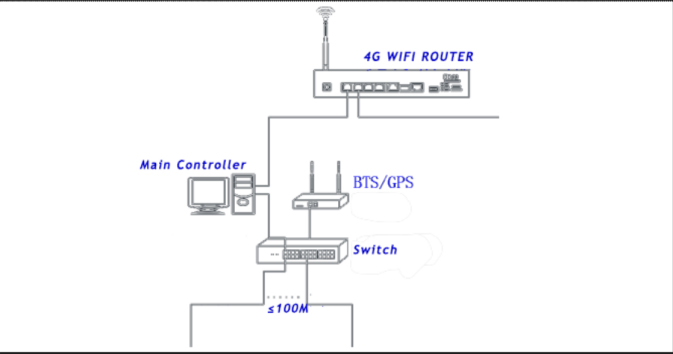

System Connection
