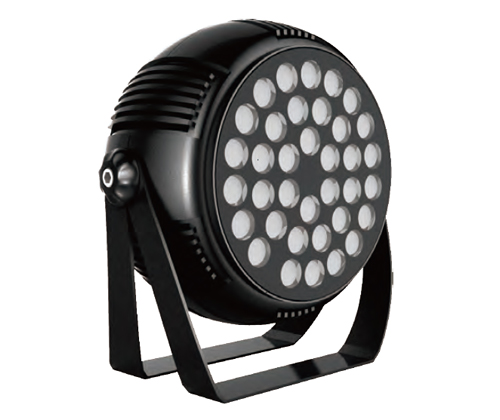

Large LED Flood Light EXC-B246ABH

 EXC-B246ABH full color series are high power outdoor landscape flood lighting fixture with high strength aluminum alloy housing by EXC-LED. Each lighting fixture is a separate lighting pixel, and each pixel can realize 8bit/16bit grades gray scale changing. Each lighting fixture can be used for accent lighting or flood lighting, such as building facade, bridge, stage, etc.

Get a quote

Specification Optical Parameters of Large LED Flood Light EXC-B246ABH

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: W(2200K-6500K), R+G+B, R+G+B+W, RGBW

  • Beam Angle: 8°, 10°, 15°, 20°, 30°, 45°, 60°, and other angles optional

  • Source Life: 50,000h


Electrical Parameters of Large LED Flood Light EXC-B246ABH

  • Working Voltage: AC220V

  • Rated Power: Maximum 72W


Control Parameters of Large LED Flood Light EXC-B246ABH

  • Control Method: DMX512 /ON OFF

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of Large LED Flood Light EXC-B246ABH

  • Shell Material: High Strength Aluminum

  • Cover: Tempered glass

  • Surface Color: Black&White, Other colors optional

  • Structure Size: 280mm x 282mm x 142mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 3.8kg


Environmental Parameters of Large LED Flood Light EXC-B246ABH

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 70°C

  • Protection rating: IP66

  • Application environment: Outdoor
