Controller EXC-10000P

EXC-10000P is a music intelligent control system specially designed for large-scale music and lighting combined with lighting systems. It uses EXC-10000P as the hardware platform, adopts a new generation of digital video and digital audio processing technology, and combines EXC's unique Audio collection and restoration technology, professional lighting control software with optimized algorithm model as the core, real-time mapping of video and audio data, synchronous and smooth reproduction of perfect music and lighting video. The system inherits mature network signal transmission technology and adopts a distributed wiring system. The system is simple and reliable, with high stability; supporting switches and EXC2905T1 sub-controllers, supporting all EXC lamps and standard DMX512 lamps.

System Features

  • Support multiple audio and video input formats;

  • Support smart switch, smart replacement effect;

  • Support synchronous real-time playback, control pixels for items within 500,000 points;

  • Support timing playback in multiple holiday modes;

  • Intel quad-core processor:I7 6700;

  • DDR3 8G memory, 500G industrial solid state drive;

  • Intel HD integrated graphics, 3D engine;

  • DVI/VGA interface dual-screen display function;

  • Two Gigabit Ethernet ports, two USB3.0

  • It needs to be used with EXC-2905 series sub-controllers;

  • Industrial-grade networking system is more secure and stable;

  • Support the control of all series of lamps  of  EXC;


Specification

Basic Specification

External Size

481*509*175m

Output Port

2pcs

Input Port

PC standard peripheral port,Support external audio input

Support lamps

EXC all series lamps and standard DMX512 lamps

Storage medium

hard disk

Working Condition

Working Temperature

5°C - 50°C

Storage Temperature

-20°C - 60°C

Protection Rating

Indoor

Electrical Specification

Signal interface

RJ45

Working Voltage

AC 220V

Maximum Wattage

350W

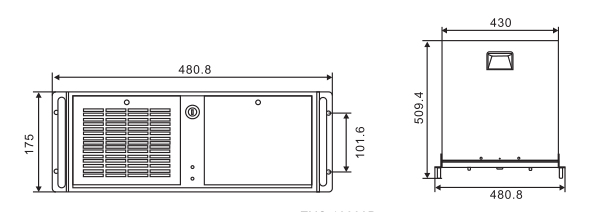

Physical Dimension:



Available Model

Series

Model

Main Features

Working Voltage

Max Wattage

Size

Professional

EXC-10000

Online main controller, industrial computer customized version, control pixels within 500,000

AC220V

300W

481*509*175mm

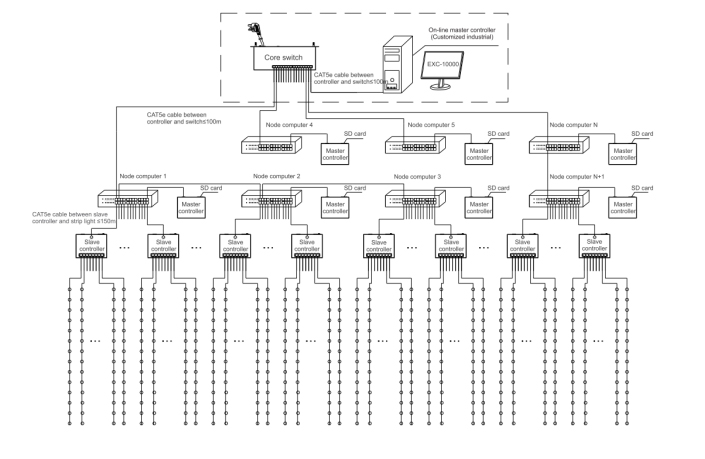

System Connection Diagram:
