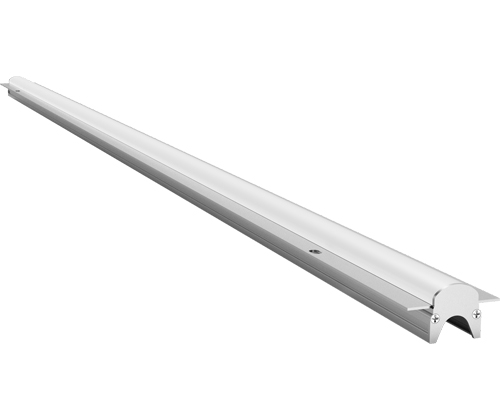

EXC-U20TAL1 full color series products are extra-narrow LED linear light with aluminum shell for outdoor landscape decoration. The width of EXC-U20NB is only 20mm, each one with 8 pixels and each pixel can realize 8bit/16bit grade gray scale color changing. EXC-U20NB can be applicable for super large area displaying or outline the building. It also can be used to decorate facade inside and outside, even small area wall-washing effect
LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram
Color: RGB, RGB+W, etc
Beam Angle: ≥105°
Source Life: 50,000h
Working Voltage: DC 24V
Rated Power: 9W/12W/15W/18W
Control Method: DMX512, ON/OFF
Gray Scale: 8Bits/16Bits
Control System: EXC-ALL the lights control system
Shell Material: Aluminum alloy
Surface Color: Black&White, Other colors optional
Structure Size: 999mm x 40mm x 25mm (L x W x H, exclude Mounting Bracket)
Total Weight: 0.45Kg
Working Temperature: -40°C to 50°C
Storage Temperature: -40°C to 70°C
Protection rating: IP66
Application environment: Outdoor
