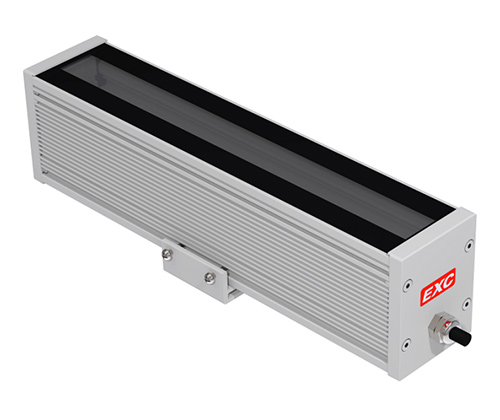

Special Light EXC-T60ABL

EXC-T60ABLSnail Window Wall washer lights are a single color LED light with extruded aluminum alloy housing, which is designed for window lighting by EXC-T60ABL LED. With Unique appearance design, mainly used for Special area lighting light window, lighting up the whole window, to create special lighting effect.

Specification Optical Parameters of Special Light EXC-T60ABL

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: W(2700K-6500K)

  • Beam Angle: 5*125°degree, Open beam, and other angles optional

  • Source Life: 50,000h


Electrical Parameters of Special Light EXC-T60ABL

  • Working Voltage: DC 24V

  • Rated Power: Maximum 18W


Control Parameters of Special Light EXC-T60ABL

  • Control Method: DMX512

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of Special Light EXC-T60ABL

  • Shell Material: High Strength Aluminum

  • Surface Color: Black&White, Other colors optional

  • Structure Size: 299mm x 60mm x 117mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 1.2Kg


Environmental Parameters of Special Light EXC-T60ABL

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 65°C

  • Protection rating: IP66

  • Application environment: Outdoor
