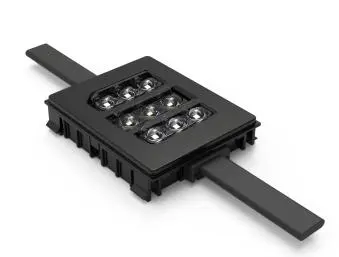

LED Pixel Light EXC-P53AM0

EXC-P53AM0 full-color series consists of full-color chip LED string pixel lights specially designed by EXC for outdoor landscape lighting. It adopts top-level optical vision angle design, super remote multi-color and visual brightness consistency technology and precision control. Each pixel is a separate four-primary lighting pixel, and each pixel can realize 65536 grades gray scale changing; they can be used for extra-large area display of building facades, contour shaping, interior and exterior surface decoration lighting; the pixel pitch can be customized; the installation methods are various.


Feauture

  • The newest generation technology:DMX512 parallel bus design

  • Close range anti-glare optical design

  • Integrated clip-on endless connection

  • Fully sealed and waterproof design with high thermal conductive adhesive imported from Germany

  • Special outdoor lightning and ESD protection


Specification

Basic Specifications

Color

W(2200-6500K), RGB, RGB+W

Working Voltage

15V/24V

Max. Power Consumption

2.7W

Light Source

9pcs SMD LEDs

CRI

80

Control

ON/OFF, DMX512

Grey Scale

8bit, 16bit

Source Life

50,000h

RDM

Optional

LED chip Brand

Optional(Cree, OSRAM, Lumileds, Epistar, etc...)

Cover

PC(Transparent,Opal)

Housing

Aluminium

Weight

65g

Dimensions

69mm x 55.5mm x 16.5mm (L x W x H, exclude Mounting Bracket)

Installation

Installation By Aluminum Profile

Working Temperature

-40°C to 60°C

Storage Temperature

-40°C to 70°C

Protection Rating

IP66

Luminous Flux

25LM/W(RGB), 50LM/W(White), 30LM/W(RGBW)

Central Light Intensity

45cd(W)/27cd(RGB)/36.5cd(RGB+W)

Beam Angle

120°/80°*120°
