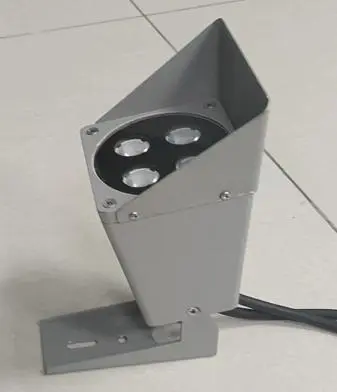

Small LED Flood Light EXC-B90ARL

EXC-B90ARL series consists of full-color large-power spotlights with high-strength aluminum-alloy housing specially designed by EXC for outdoor landscape lighting. Each light is a separate lighting pixel, and each pixel can realize 8/16bit grades gray scale changing. It could be used for illumination in specific areas or landscape wash lighting, applicable on building facades, bridges, stages, etc.


Features

  • The newest generation technology: DMX512 parallel bus design

  • High strength aluminum and low thermal resistance path cooling design

  • High reliability modularization design

  • Outdoor lighting protection and electrostatic discharge (ESD) protection design

  • Load safety design


Specification

Basic Specifications

Color Range

White

Working Voltage

DC 24V

Max. Power Consumption

15W

Light Source

5PCS High Power LEDs

LED chip Brand

Optional(Cree, OSRAM, Lumileds, Epistar, etc...)

CRI

80

Control

DMX512, ON/OFF

Source Life

50,000 h

Housing

High Strength Aluminum

Cover

Tempered glass

Weight

1.3Kg

Dimensions

106mm x103.6mm x 174.8mm (L x W x H, exclude Mounting Bracket)

Installation

Mounting seat

Working Temperature

-40°C to 60°C

Storage Temperature

-40°C to 70°C

Protection Rating

IP66

Efficiency flux

≥60LM/W(White),≥40LM/W(RGBW),≥30LM/W(RGB)

Beam Angle

10°, 25°,30°, 80° and other angles optional

Host Controller

EXC-5200

Slave Controller

EXC-2905T1

Signal Cable

EXC-LED outdoor special cable
