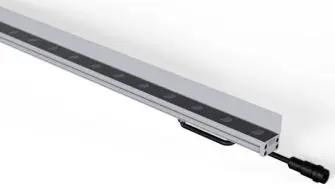

EXC-W35CRL Multi-pixel LED Wall Washer

EXC-W35CRL series are high power outdoor landscape LED wall washer with high strength aluminum alloy housing by EXC-LED, can be used for accent lighting or flood lighting, such as building facade, bridge, stage, etc. Versatile length allows various options.


Specification

Basic Specifications

Color Range

W(2200K-6500K)

Light Source

18/24 pcs LEDs

Working Voltage

DC 24V

Max. Power Consumption

18W/24W

Control

ON/OFF

Segment

1

Grey Scale

/

Source Life

50,000 h

RDM

Optional

LED chip Brand

Optional(Cree, OSRAM, Lumileds, Epistar, etc...)

Housing

High Strength Aluminum

Cover

Tempered glass

Weight

0.9KG

Working Temperature

-40°C to 60°C

Storage Temperature

-40°C to 70°C

Protection Rating

IP66

Light Intensity

1260LM/1680LM

Beam Angle

25*40°

Host Controller

EXC-5200

Slave Controller

EXC-2905T1

Signal Cable

EXC-LED outdoor special cable


Features

  • Cancel the knapsack; light,thin,and simple in design

  • Patented comb-like convection design ensure better heat dissipation

  • Low thermal resistance path heat dissipation design

  • Design of unique waterproof and ventilation

  • Outdoor lighting protection and electrostatic discharge (ESD) protection design

  • Projection distance: 1-1.5m
