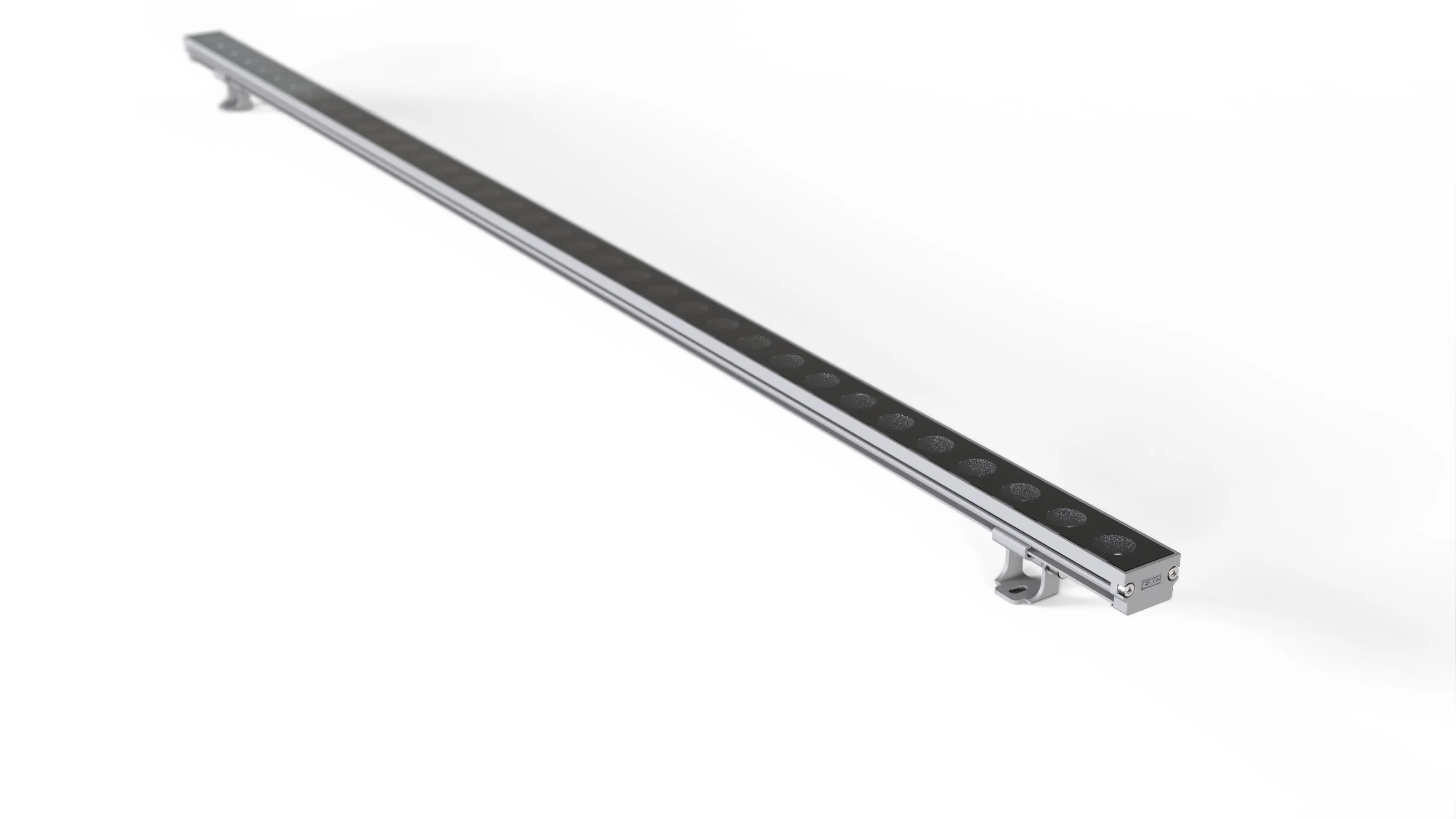

EXC-W30CBL Multi-pixel LED Wall Washer

EXC-W30CBL white color series are high power outdoor landscape LED wall washer with low strength aluminum alloy housing by EXC-LED. EXC-W30CBL can be used for accent lighting or flood lighting, such as building facade, bridge, stage, etc. customized lighting fixture length available.


Features

  • Only 30mm width, very compact design

  • Patented comb-like convection design ensure better heat dissipation

  • Low thermal resistance path heat dissipation design

  • Design of unique waterproof and ventilation

  • Outdoor lighting protection and electrostatic discharge (ESD) protection design

  • Projection distance: 1-1.5m


Specification

Basic Specifications

Color Range

W(2200K-6500K)

Light Source

36 pcs LEDs

Working Voltage

DC 24V

Max. Power Consumption

12W

Control

ON/OFF

Segment

1

Grey Scale

/

Source Life

50,000 h

RDM

Optional

LED chip Brand

Optional(Cree, OSRAM, Lumileds, Epistar, etc...)

Housing

High Strength Aluminum

Cover

Tempered glass

Weight

0.75KG

Working Temperature

-40°C to 60°C

Storage Temperature

-40°C to 70°C

Protection Rating

IP66

Light Intensity

840LM

Beam Angle

20°

Host Controller

EXC-5200

Slave Controller

EXC-2905T1

Signal Cable

EXC-LED outdoor special cable
