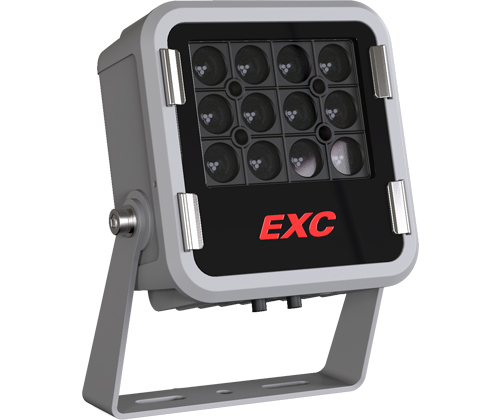

Narrow Beam Flood Light EXC-B145CBL

 EXC-B145CBL full color series are high power outdoor landscape flood lighting fixture with high strength aluminum alloy housing by EXC-LED. Each lighting fixture is a separate lighting pixel, and each pixel can realize 8bit/16bit grades gray scale changing. Each lighting fixture can be used for accent lighting or flood lighting, such as building facade, bridge, stage, etc.

Get a quote

Specification Optical Parameters of Narrow Beam Flood Light EXC-B145CBL

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: W, RGB, RGBW

  • Beam Angle:

  • W-3030P7: 8°/10°/15°/20°/30°/45°/60°/80°

  • RGB-3030P7/CREE XP series: 6°/8°/10°/15°/20°/30°/45°/60°/80°

  • 3535: 30°/45°/60°/80°

  • 5050: 17°/20°/30°/45°/60°

  • Source Life: 50,000h


Electrical Parameters of Narrow Beam Flood Light EXC-B145CBL

  • Working Voltage: DC 24V

  • Rated Power: Maximum 24-36W


Control Parameters of Narrow Beam Flood Light EXC-B145CBL

  • Control Method: DMX512 /ON OFF

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of Narrow Beam Flood Light EXC-B145CBL

  • Shell Material: High Strength Aluminum

  • Cover: Tempered glass

  • Surface Color: Black&White, Other colors optional

  • Structure Size: 144mm x148mm x 65mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 1.09kg


Environmental Parameters of Narrow Beam Flood Light EXC-B145CBL

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 70°C

  • Protection rating: IP66

  • Application environment: Outdoor
