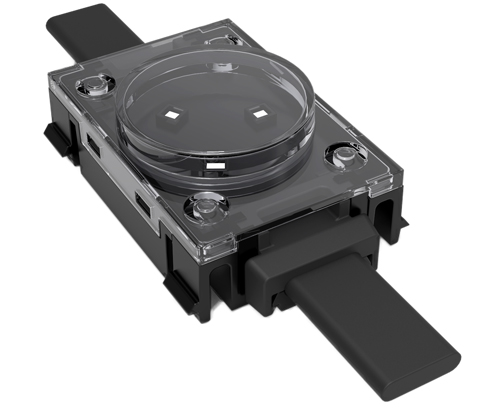

LED Pixel Light EXC-P35AP5

EXC-P35AP5 full color series are a full-color LED series string LED pixel, which are designed for outdoor landscape lighting by EXC-LED. Each EXC-35AP5 pixel is a separate lighting pixel, and each pixel can realize 8/16bit grades gray scale changing. They can be used for indoor and outdoor applications, Customized pixel pitch, and easy installation.

Get a quote

Specification Optical Parameters of LED Pixel Light 1W EXC-P35AP5

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: RGB, RGB+W, W，etc

  • Beam Angle: 120degree, Open beam, and other angles optional

  • Source Life: 50,000h


Electrical Parameters of LED Pixel Light 1W EXC-P35AP5

  • Working Voltage: DC12/15V

  • Rated Power: Maximum:0.9W/1W


Control Parameters of LED Pixel Light 1W EXC-P35AP5

  • Control Method: DMX512/On Off

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of LED Pixel Light 1W EXC-P35AP5

  • Shell Material: PC

  • Surface Color: Black&White, Other colors optional

  • Structure Size: 57mm x 35.5mm x 18mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 35g


Environmental Parameters of LED Pixel Light 1W EXC-P35AP5

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 65°C

  • Protection rating: IP66

  • Application environment: Outdoor
