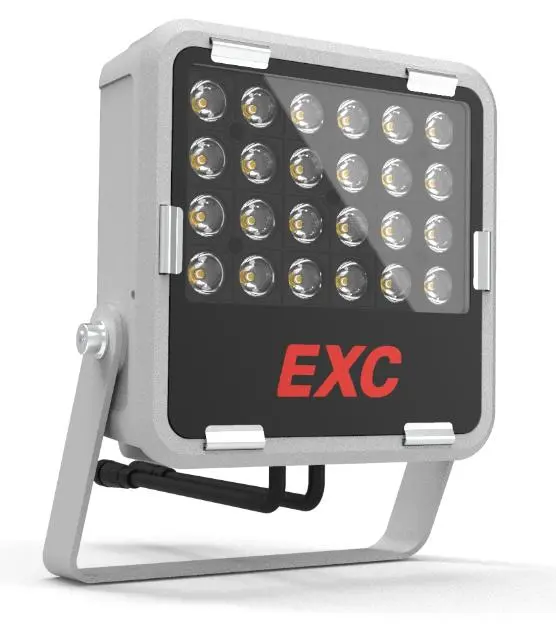

LED Flood Light Medium EXC-B185CBL

EXC-B185CBL full color series are high power outdoor landscape flood lighting fixture with high strength aluminum alloy housing by EXC-LED. Each lighting fixture is a separate lighting pixel, and each pixel can realize 8bit/16bit grades gray scale changing. Each lighting fixture can be used for accent lighting or flood lighting, such as building facade, bridge, stage, etc.


Features

  • The newest generation technology: DMX512 parallel bus design

  • High strength aluminum and low thermal resistance path cooling design

  • High reliability modularization design

  • Outdoor lighting protection and electrostatic discharge (ESD) protection design

  • Load safety design

  • Projection distance: 3-15m


Specification

Basic Specifications

Color Range

W(2200K-6500K), R+G+B, R+G+B+W, RGBW

Working Voltage

DC 24V

Max. Power Consumption

36W/48-54W/60-72W

Light Source

18/24PCS High Power LEDs

LED chip Brand

Optional(Cree, OSRAM, Lumileds, Epistar, etc...)

CRI

80

Control

DMX512, ON/OFF

Source Life

50,000 h

Housing

High Strength Aluminum

Cover

Tempered glass

Weight

3.8Kg

Dimensions

210mm x 184mm x 58mm (L x W x H, exclude Mounting Bracket)

Installation

Installation with screws

Working Temperature

-40°C to 60°C

Storage Temperature

-40°C to 70°C

Protection Rating

IP66

Efficiency flux

≥60LM/W(White),≥40LM/W(RGBW),≥30LM/W(RGB)

Beam Angle

W-3030P7: 8°/10°/15°/20°/30°/45°/60°/80°                                                                   RGB-3030P7/CREE XP series: 8°/10°/15°

20°/30°/45°/60°/80°                                                                                                                                                        3535: 30°/45°/60°/80°                                                  5050:20°/30°/45°/60°

Host Controller

EXC-5200

Slave Controller

EXC-2905T1

Signal Cable

EXC-LED outdoor special cable
