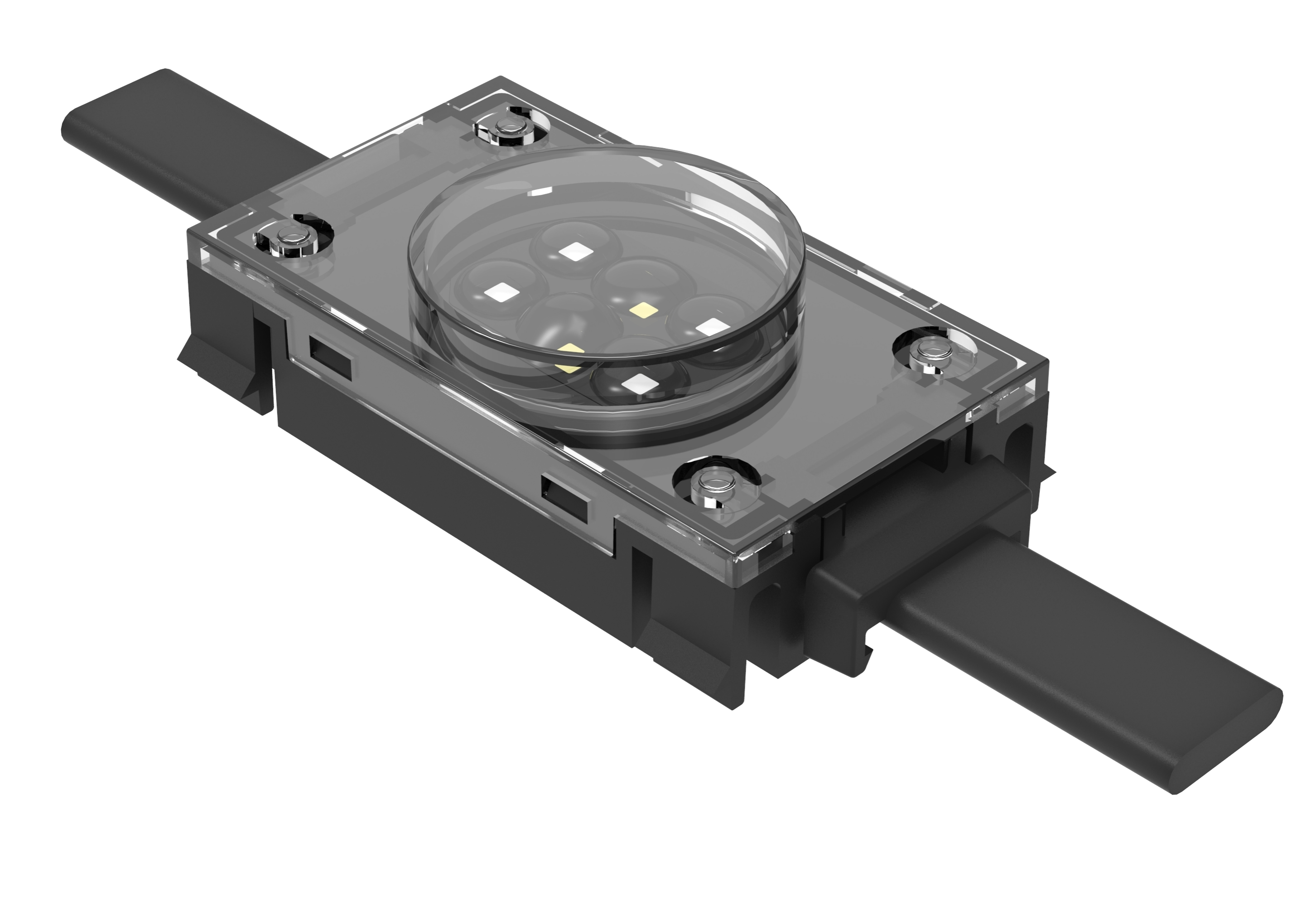

EXC-P35AP6 LED Pixel Light

EXC-P35AP6 full color series are a full-color LED series string LED pixel, which are designed for outdoor landscape lighting by EXC-LED. Each EXC-35AP6 pixel is a separate lighting pixel, and each pixel can realize 8/16bit grades gray scale changing. They can be used for indoor and outdoor applications, Customized pixel pitch, and easy installation.


Feature

  • The newest generation technology: DMX512 parallel bus design

  • Integrated clip-on endless connection

  • Fully sealed and waterproof design with high thermal conductive adhesive imported from Germany

  • Special outdoor lightning and ESD protection


Specification


Basic Specifications

Color

W(2200K-6500K), RGB, RGB+W, etc...

Working Voltage

15V/24V

Max. Power Consumption

0.9W/1.2W/1.5W/1.8W

Light Source

4/6pcs SMD LEDs

CRI

80

Control

ON/OFF, DMX512

Grey Scale

8bit, 16bit

Source Life

50,000h

RDM

Optional

LED chip Brand

Optional(Cree, OSRAM, Lumileds, Epistar, etc...)

Cover

PC(Transparent,Opal)

Housing

PC+ABS

Weight

38g

Dimensions

65mm x 35.5mm x 18mm (L x W x H, exclude Mounting Bracket)

Installation

Installation By Aluminum Profile

Working Temperature

-40°C to 60°C

Storage Temperature

-40°C to 70°C

Protection Rating

IP66

Luminous Flux

25LM/W(RGB), 50LM/W(White), 30LM/W(RGBW)

Central Light Intensity

20/25cd(W) 7.5/12.5cd(RGB) 18.75/20cd(RGB+W)

Beam Angle

105°

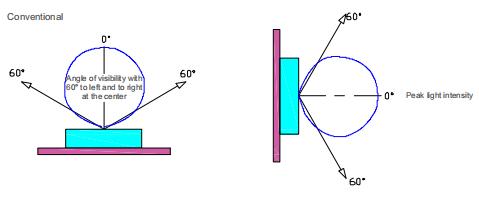

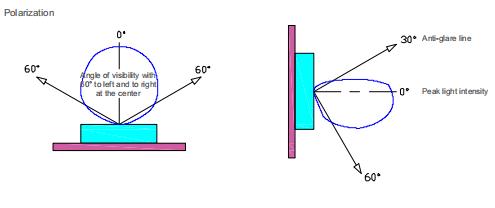

Light Intensity Distribution


Light Intensity Chart

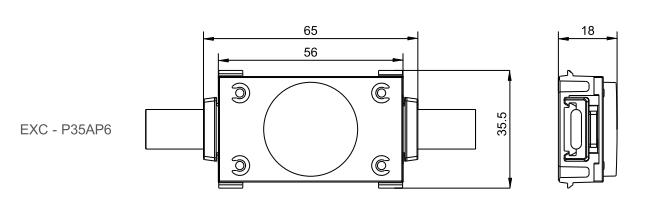

Physical Dimension

Unit:mm

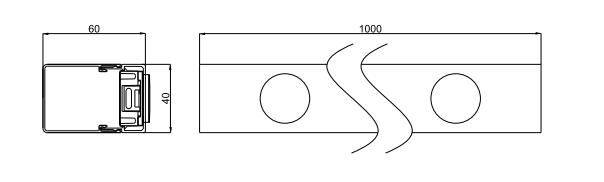

Mounting By Aluminum Profile






System connection diagram:

1、Host controller should connect with slave controller. Working voltage for controllers are AC220V.

2、On-line main controller should connect with slave controller, on-line main controller and sub controller working voltage are AC220V.

3、each sub-controller with 8 ports, with each port 512 pixels, supporting data converter, supports 100 meters ultra-long haul transmission.

4、The CAT-5 e. cable distance should be within 100 meters between host controller and slave controller, between slave controllers and switch, etc.

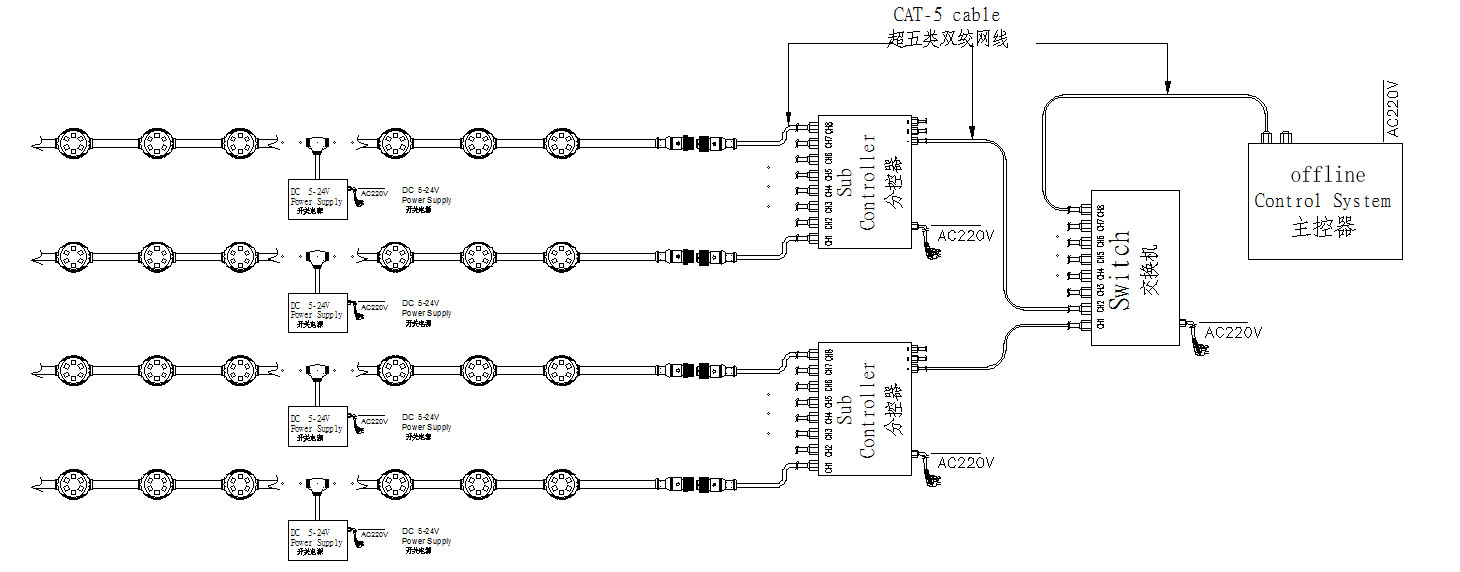

Online Controlling System Diagram



Offline Controlling System Diagram


Accessories :

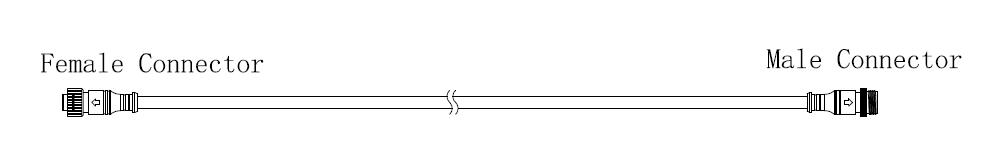

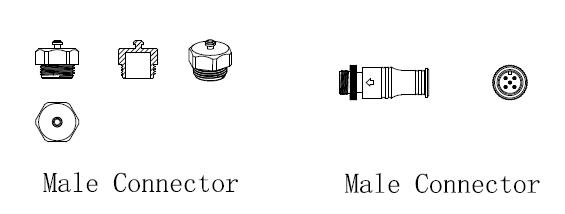

1: Female and Male Connector( Connect to first dot light for signal transmission)

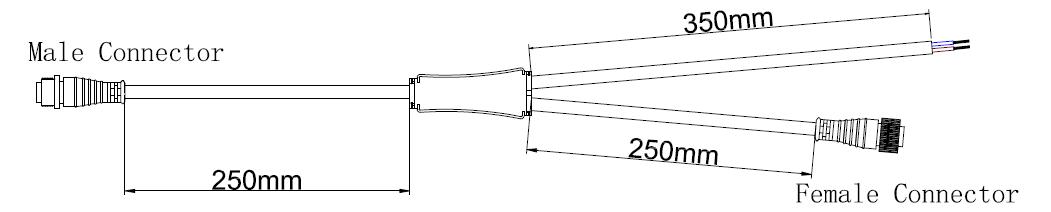

2: Y Shape Connector(For power Distribution)





3: Interconnection Cable(1.3M,3M,5M is standard length)




4: End Cap
