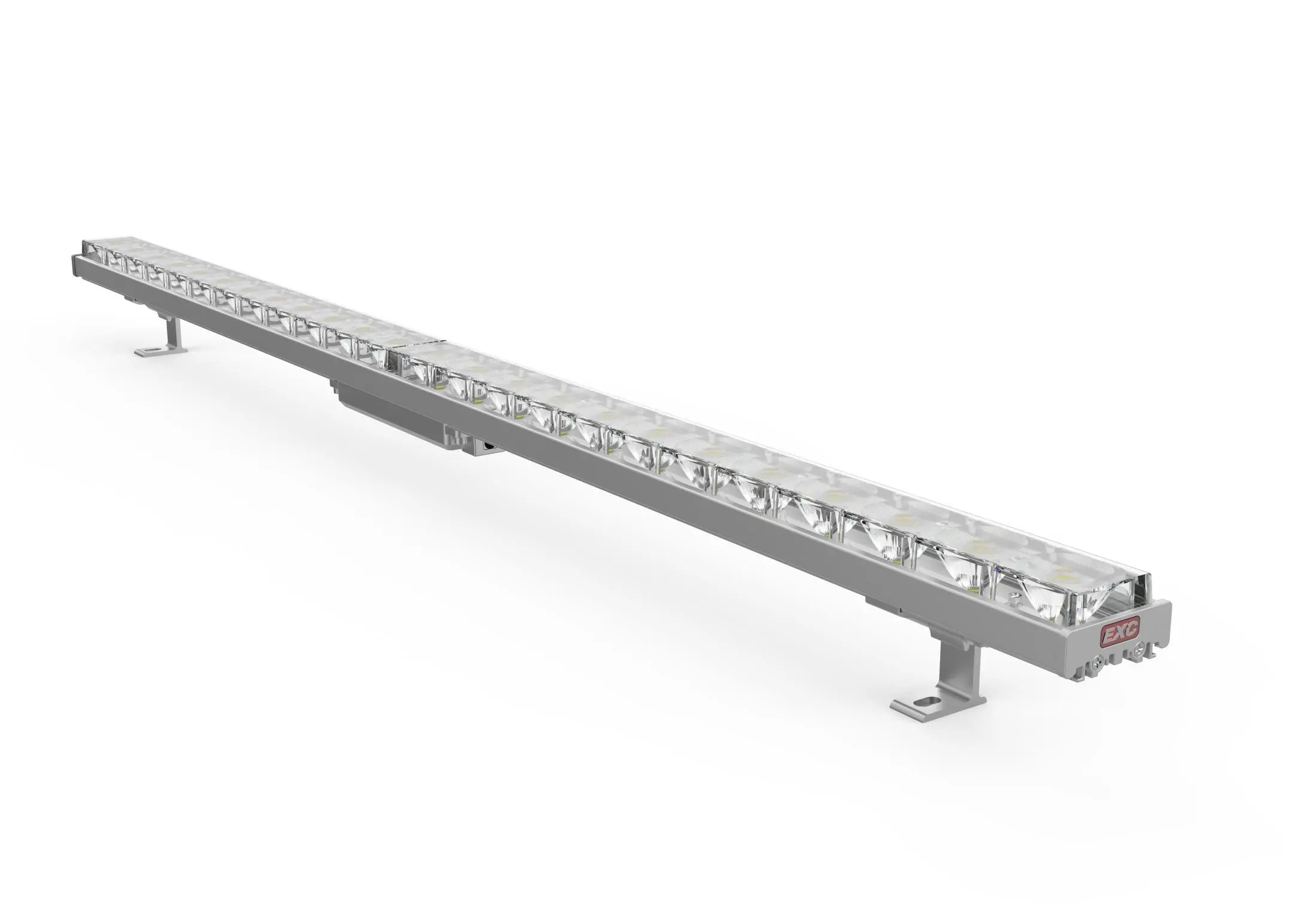

EXC-W52HBL Multi-pixel LED Wall Washer

EXC-W52HBL full color series are high power outdoor landscape LED wall washer with high strength aluminum alloy housing by EXC-LED. EXC-W64B can be used for accent lighting or flood lighting, such as building facade, bridge, stage, etc. Customized lighting fixture length available.


Features

  • Professional comb convection heat dissipation design

  • Unique waterproof and breathable design

  • Low thermal resistance path heat dissipation design

  • Outdoor lightning protection and electrostatic discharge (ESD) protection design

  • Projection distance: 1-8m


Specification

Basic Specifications

Color Range

W(2700K-6500K)

Light Source

24 LEDs

Working Voltage

AC 220V

Max. Power Consumption

36W

Control

DMX512

Segment

1

Grey Scale

8bit, 16bit

Source Life

50,000 h

RDM

Optional

LED chip Brand

Optional(Cree, OSRAM, Lumileds, Epistar, etc...)

Housing

High Strength Aluminum

Cover

PC

Weight

1.86KG

Working Temperature

-40°C to 60°C

Storage Temperature

-40°C to 70°C

Protection Rating

IP66

Efficiency flux

≥120LM/W

Beam Angle

17°

Host Controller

EXC-5200

Slave Controller

EXC-2905T1

Signal Cable

EXC-LED outdoor special cable
