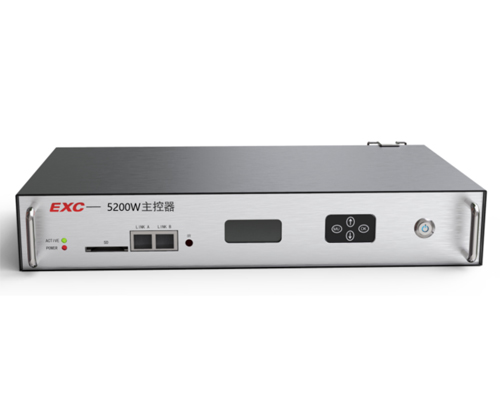

Controller EXC-5200

EXC-5200W is the off-line control system we EXC-LED design for the medium-scale lighting system, it adopts advanced digital video processing technology, combined with leading FPGA technology and optimization algorithm model as core, perfectly present the video. With mature network signal transmission technology and distributed cabling system, the system has the advantage of high stability, simple and reliable. The system support a standard switch, EXC-2905T1 sub-controller, and all EXC standard lamps, and DMX512 lamps.


Specification Optical Parameters of Controller EXC-5200

  • Control Method: EXC full series lighting fixture and DMX512 standard protocol lighting fixture

  • Communication Protocol: TCP/IP

  • Gray Level: 8Bits/12Bits/16Bits

  • Communication Port: 1000Mbps ethernet portx2

  • Storage Medium: SD card≤32G

  • Online Play: Support

  • Wi-Fi Sync: EXC-5200W series support


Electrical Parameters of Controller EXC-5200

  • Working Voltage: AC 220V

  • Rated Power: 15W


Control Parameters of Controller EXC-5200

  • Control Method: DMX512

  • Gray Scale: 8Bits/12Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of Controller EXC-5200

  • Shell Material: High quality electro-galvanized steel sheet+powder injection

  • Surface Coloe: Black

  • Structure Size: 310*199*52mm

  • Total Weight: 1.8kg

  • Signal Connector: Dedicated EXC Connector

  • Standard Accessories: Remote control x1/SD card x1/card reader x1/AC power cord x1


Environmental Parameters of Controller EXC-5200

  • Working Temperature: -30°C to 50°C

  • Storage Temperature: -40°C to 70°C

  • Humidity Range: 0%-90%

  • Protection Rating: IP5X
