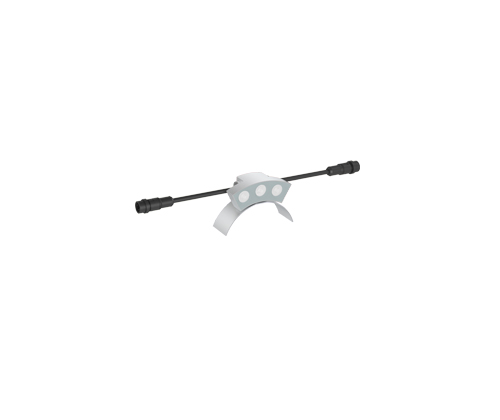

Special Light EXC-WL35CBL

Specification Optical Parameters of Special Light EXC-WL35CBL

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: W(2700K-6500K), etc.

  • Beam Angle: W-3030P7: 10°/15°/20°/30°/45°/60°/80°

  • RGB-3030P7/CREE XP series: 6°/8°/10°/15°20°/30°/45°/60°/80°

  • 3535: 30°/45°/60°/80°

  • 5050: 17°/20°/30°/45°/60°, Open beam and other angles optional

  • Source Life: 50,000h


Electrical Parameters of Special Light EXC-WL35CBL

  • Working Voltage: DC 24V

  • Rated Power: Maximum 3W


Control Parameters of Special Light EXC-WL35CBL

  • Control Method: ON/OFF

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of Special Light EXC-WL35CBL

  • Shell Material: High Strength Aluminum

  • Surface Color: Black&White, Other colors optional

  • Structure Size: 107mm x 34mm x 41mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 0.4Kg


Environmental Parameters of Special Light EXC-WL35CBL

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 65°C

  • Protection rating: IP66

  • Application environment: Outdoor
