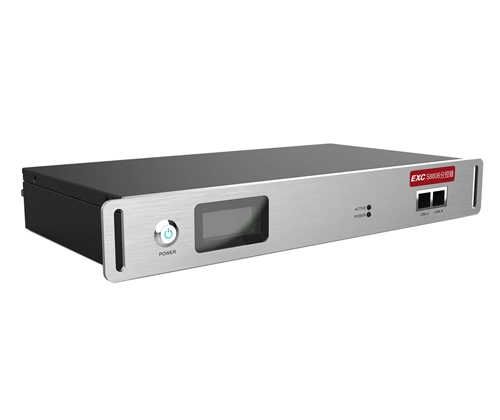

Controller EXC-S880B

EXC-S880B series sub-controllers are specially designed for outdoor large and medium-sized lighting projects. It adopts advanced digital video processing technology, combined with leading FPGA technology, and takes optimized algorithm models as the core to achieve perfect video presentation. It Supports EXC-5200/EXC-M520B series of medium-sized offline lighting controllers, large-scale online lighting controller EXC-6000 series, EXC-8000 series, super-large lighting control system EXC-10000, and Internet remote control system supporting design 8-port sub-controller adopts an optimized network transmission protocol, supports 100M, Gigabit adaptive LAN connection, and is extremely flexible. The EXC-S880B sub-controller is matched with a switch to form a lighting system network, and it can also be used Support standard switch networking or use existing LAN resources.

Features

  • Sub-controller, used with main controller;

  • Support 8-port output, with each port controlling no more than 1,024 pixels;

  • Support Ethernet interface and TCP/IP/UDP data communication protocols;

  • Support switch parallel scheme: reduce the system cascade chain length to improve stability;

  • Support synchronous control of multiple GPS satellites/BTS wireless base stations;

  • The control frame rate can reach 60 frames per second, supports 65536 grayscale lamp control;

  • Support standard DMX512/1990 general protocol and extended DMX512 protocol;

  • Independent brightness control of three primary colors, making precise adjustment of white balance easier and more effective;

  • Support automatic, timing, holiday preset effects playback;

  • Support different types of lamps and lamps of different protocols to be mixed, with strong compatibility;

  • Enhanced port protection circuit, the port is not easy to damage;

  • Support all products of EXC-LED;


Specification

Basic Specification

External Size

291*145*40mm

Shell Material

High quality electrolytic galvanized sheet + powder spraying

Weight

1.2kg

Output Port

8port

Control Pixel

8x1024 pixels

Gray Scale

8Bits/12Bits/16Bits

Support Lights

Support all series of EXC products and standard DMX512 lamps

Storage Medium

No

Communication Port

2*Gigabit Ethernet port

Communication Protocol

TCP/IP protocol

Working Condition

Working Temperature

-20°C~50°C

Working Temperature

-40°C~70°C

Humidity Range

0%-90%

Protection Rating

Indoor

Electrical Specification

Signal Connector

Dedicated EXC connector

Working Voltage

AC 220V

Maximum Wattage

15W

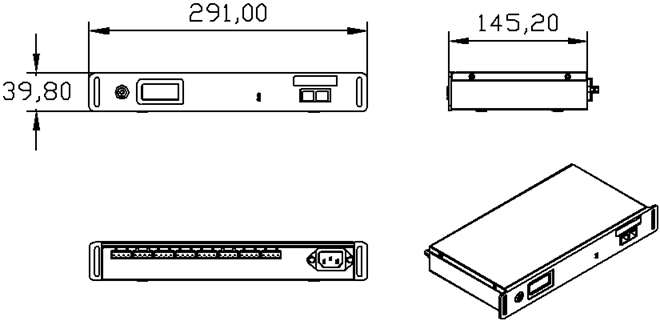

Physical Dimension:




Available Model

Series

Model

Main Features

Working Voltage

Max Wattage

Size

EXC-S880B

EXC-S880B-E4P007A

4th generation, sub-controller, 8 ports, serial lamps, 8192 pixels

AC220V

15W

291*145*40mm

EXC-S880B-E4P007B

4th generation, sub-controller, 8 ports, parallel lamps, 8192 pixels

AC220V

15W

291*145*40mm


Controlling Diagram(Example is 2905 figure):
