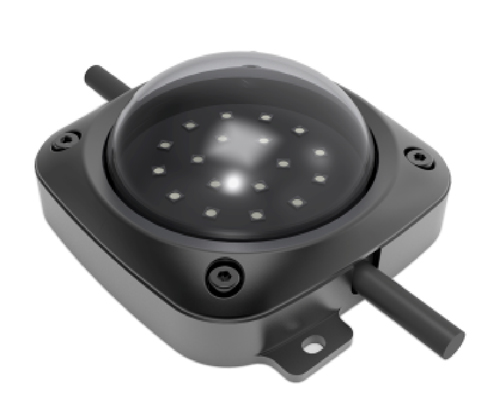

LED Pixel Light EXC-P90DM0

EXC-P90DM0 full-color series are a full-color LED series string LED pixel light with extruded aluminum alloy housing, which is designed for outdoor landscape lighting by EXC-LED. Each EXC-P90AM pixel is a separate lighting pixel, and each pixel can realize 8bit/16bit grades grayscale changing. LED pixel string lights can be used for indoor and outdoor applications, Customized pixel pitch, and easy installation.

Get a quote

Specification Optical Parameters of LED Pixel String Lights 5W EXC-P90DM0

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: RGB, RGB+W, W, etc

  • Beam Angle: 120degree, Open beam, and other angles optional

  • Source Life: 50,000h


Electrical Parameters of LED Pixel String Lights 5W EXC-P90DM0

  • Working Voltage: DC24V

  • Rated Power: Maximum: W(3.5W/5W), RGB(3/4W), RGB+W(3W/5W)


Control Parameters of LED Pixel String Lights 5W EXC-P90DM0

  • Control Method: DMX512/On Off

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of LED Pixel String Lights 5W EXC-P90DM0

  • Shell Material: Aluminum

  • Surface Color: Black&White, Other colors optional

  • Structure Size: 107mm x 107mm x 42mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 450g


Environmental Parameters of LED Pixel String Lights 5W EXC-P90DM0

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 65°C

  • Protection rating: IP66

  • Application environment: Outdoor
