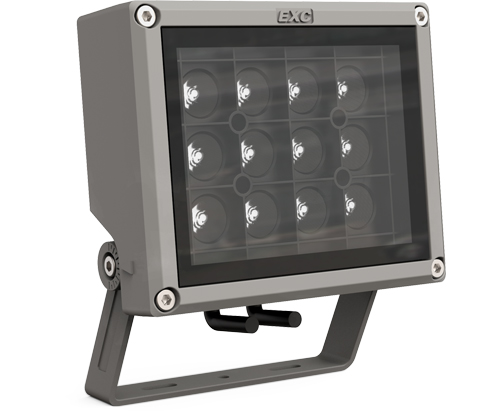

Narrow Beam Flood Light EXC-B150BBH

 EXC-B150BBH full color series are high power outdoor landscape flood lighting fixture with high strength aluminum alloy housing by EXC-LED. Each lighting fixture is a separate lighting pixel, and each pixel can realize 8bit/16bit grades gray scale changing. Each lighting fixture can be used for accent lighting or flood lighting, such as building facade, bridge, stage, etc.

Specification Optical Parameters of Narrow Beam Flood Light EXC-B150BBH

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: W

  • Beam Angle:5°, 10°, 30°, 80°, and other angles optional

  • Source Life: 50,000h


Electrical Parameters of Narrow Beam Flood Light EXC-B150BBH

  • Working Voltage: AC220V

  • Rated Power: Maximum 18-24W


Control Parameters of Narrow Beam Flood Light EXC-B150BBH

  • Control Method: ON OFF

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of Narrow Beam Flood Light EXC-B150BBH

  • Shell Material: High Strength Aluminum

  • Cover: Tempered glass

  • Surface Color: Black&White,Other color optional

  • Structure Size: 148mm x 121mm x 176mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 1.46kg


Environmental Parameters of Narrow Beam Flood Light EXC-B150BBH

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 70°C

  • Protection rating: IP66

  • Application environment: Outdoor
