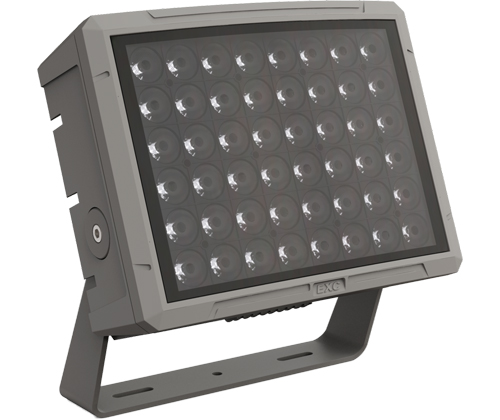

Large LED Flood Light EXC-B400BBH

EXC-B400BBH full-color series is specially designed for outdoor LED landscape lighting by EXC-LED. It is provide with a high-strength aluminum alloy housing whose arc surface achieves the effect of self-cleaning; it could be used for illumination in specific areas or landscape wash lighting, applicable on building facades, bridges, stages, etc.

Specification Optical Parameters of Large LED Flood Light EXC-B400BBH

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: W(2200K-6500K), R+G+B, R+G+B+W, RGBW

  • Beam Angle:

  • W-3030P7:8°/10°/15°/20°/30°/45°/60°/80°

  • RGB-3030P7/CREE XP series:6°/8°/10°/15°/20°/30°/45°/60°/80°

  • 3535:30°/45°/60°/80°

  • 5050:17°/20°/30°/45°/60°

  • Source Life: 50,000h


Electrical Parameters of Large LED Flood Light EXC-B400BBH

  • Working Voltage: AC220V

  • Rated Power: Maximum 150W/200W/240W/300W


Control Parameters of Large LED Flood Light EXC-B400BBH

  • Control Method: DMX512 /ON OFF

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of Large LED Flood Light EXC-B400BBH

  • Shell Material: High Strength Aluminum

  • Cover: Tempered glass

  • Surface Color: Black&White, Other colors optional

  • Structure Size: 400mm x 305mm x 139mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 12kg


Environmental Parameters of Large LED Flood Light EXC-B400BBH

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 70°C

  • Protection rating: IP66

  • Application environment: Outdoor
