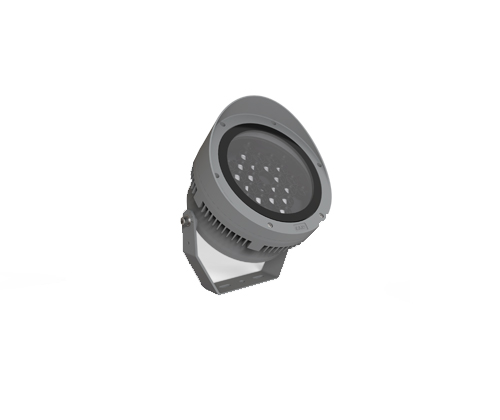

Special Light EXC-BC245BRH

 EXC-BC245ARH Light tree lamp are high power outdoor landscape flood lighting fixture with high strength aluminum alloy housing by EXC-LED. Each lighting fixture can be used for accent lighting or flood lighting, such as ancient buildings,landscape garden, etc.

Specification Optical Parameters of Special Light EXC-BC245BRH

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: W(2200K-6500K), R+G+B, RGBW, etc

  • Beam Angle:

  • W-3030P7: 10°/15°/20°/30°/45°/60°/80°

  • RGB-3030P7 /CREE XP Series: 6°/8°/10°/15°/20°/30°/45°/60°/80°

  • 3535: 30°/45°/60°/80°

  • 5050: 17°/20°/30°/45°/60°, Open beam and other angles optional

  • Source Life: 50,000h


Electrical Parameters of Special Light EXC-BC245BRH

  • Working Voltage: DC 24V

  • Rated Power: Maximum 48/50/60W


Control Parameters of Special Light EXC-BC245BRH

  • Control Method: DMX512, ON/OFF

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of Special Light EXC-BC245BRH

  • Shell Material: High Strength Aluminum

  • Surface Color: Black&White, Other colors optional

  • Structure Size: 245mm x 245mm x 323mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 5.44kg


Environmental Parameters of Special Light EXC-BC245BRH

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 65°C

  • Protection rating: IP66

  • Application environment: Outdoor
