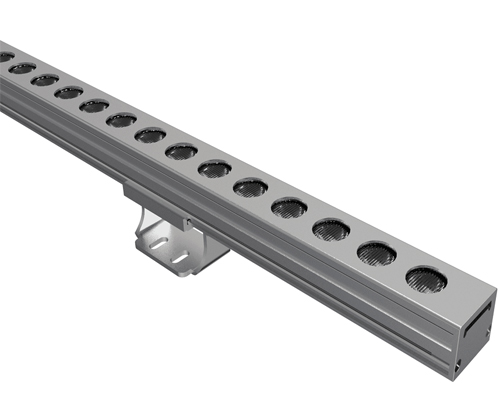

Linear Wall Washer Light Outdoor EXC-W24B

EXC-W24B full-color series consists of strip-shaped small-power wall washer lights with high-strength aluminum alloy housing specially designed by EXC for outdoor landscape lighting. It could be used for illumination in specific areas or landscape washes lighting, applicable on building facades, bridges, stages, etc. There are many options for lamp length specifications available.


Specification Optical Parameters of Linear Wall Washer Light Outdoor EXC-W24B

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: RGB, RGB+W, etc

  • Beam Angle: 15*45°, 30°and other angles optional

  • Source Life: 50,000h


Electrical Parameters of Linear Wall Washer Light Outdoor EXC-W24B

  • Working Voltage: DC 24V

  • Rated Power: Maximum 12W


Control Parameters of Linear Wall Washer Light Outdoor EXC-W24B

  • Control Method: DMX512, ON/OFF

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of Linear Wall Washer Light Outdoor EXC-W24B

  • Shell Material: Aluminum

  • Surface Color: Black&White, Off-white, Other colors optional

  • Structure Size: 994mm x 24mm x 45.2mm (L x W x H, exclude Mounting Bracket)

  • Cover: PC

  • Total Weight: 1.65KG


Environmental Parameters of Linear Wall Washer Light Outdoor EXC-W24B

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 70°C

  • Protection rating: IP66

  • Application environment: Outdoor
