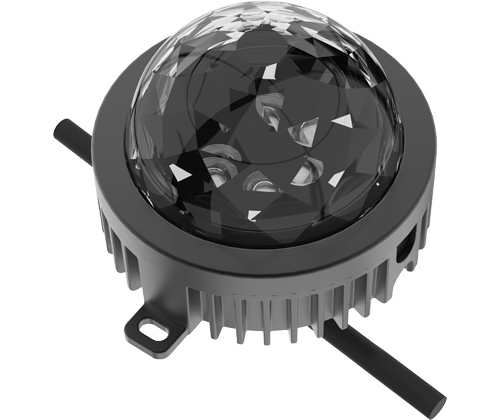

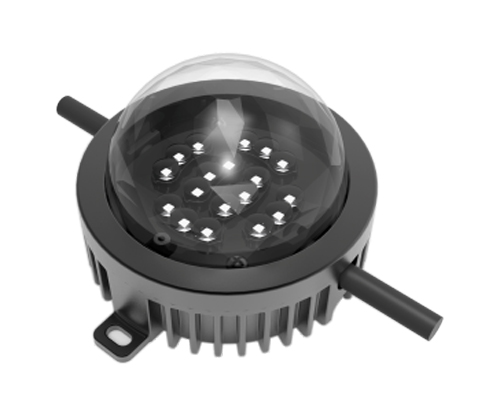

LED Pixel Light EXC-P85DM0

EXC-P85DM0 series is the string LED outdoor pixel lights with extruded aluminum alloy housing, which is designed for outdoor landscape lighting by EXC-LED. Each EXC-P85GM pixel is the  separate outdoor pixel lights, and each pixel can realize 8bit/16bit  grades grayscale changing. They can be used for indoor and outdoor applications, Customized pixel pitch, and easy installation, as well as reasonable LED pixel price.

The product fixtures withstand the sea salt and harsh environment.UV Resistance and Salt Spray Resistance.

Specification Optical Parameters of LED Outdoor Pixel Lights 5W EXC-P85DM0

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: RGB, RGB+W, W, etc

  • Beam Angle: 110° degree, Open beam, and other angles optional

  • Source Life: 50,000h


Electrical Parameters of LED Outdoor Pixel Lights 5W EXC-P85DM0

  • Working Voltage: DC24V

  • Rated Power: Maximum: 3W/4W/5W


Control Parameters of LED Outdoor Pixel Lights 5W EXC-P85DM0

  • Control Method: DMX512/On Off

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of LED Outdoor Pixel Lights 5W EXC-P85DM0

  • Shell Material: Aluminum

  • Surface Color: Black&White, Other colors optional

  • Structure Size: 105mm x 105mm x 62.5mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 250g


Environmental Parameters of LED Outdoor Pixel Lights 5W EXC-P85DM0

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 65°C

  • Protection rating: IP66

  • Application environment: Outdoor
