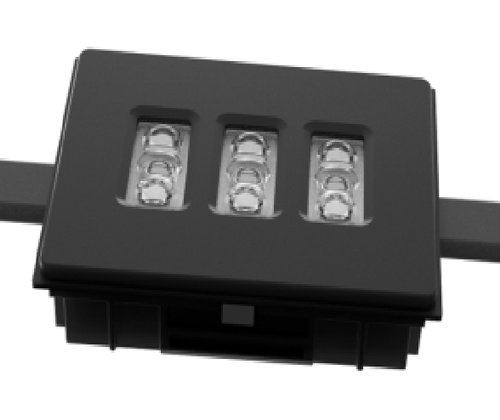

LED Pixel Light EXC-P53BP1

EXC-P53BP1 full-color series consists of full-color chip LED string pixel lights specially designed by EXC for outdoor landscape lighting. It adopts top-level optical vision angle design, super remote multi-color and visual brightness consistency technology and precision control. Each pixel is a separate four-primary lighting pixel, and each pixel can realize 8/16bit grades gray scale changing; they can be used for extra-large area display of building facades, contour shaping, interior and exterior surface decoration lighting; the pixel pitch can be customized; the installation methods are various.

Get a quote

Specification Optical Parameters of LED Pixel Light 3W EXC-P53BP1

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: RGB, RGB+W, W,etc

  • Beam Angle: 120degree, Open beam, and other angles optional

  • Source Life: 50,000h


Electrical Parameters of LED Pixel Light 3W EXC-P53BP1

  • Working Voltage: DC15/ DC24V

  • Rated Power: Maximum:2.7W


Control Parameters of LED Pixel Light 3W EXC-P53BP1

  • Control Method: DMX512/On Off

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of LED Pixel Light 3W EXC-P53BP1

  • Shell Material: PC

  • Surface Color: Black&White, Other colors optional

  • Structure Size: 65mm x 52mm x 14.5mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 65g


Environmental Parameters of LED Pixel Light 3W EXC-P53BP1

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 65°C

  • Protection rating: IP66

  • Application environment: Outdoor
