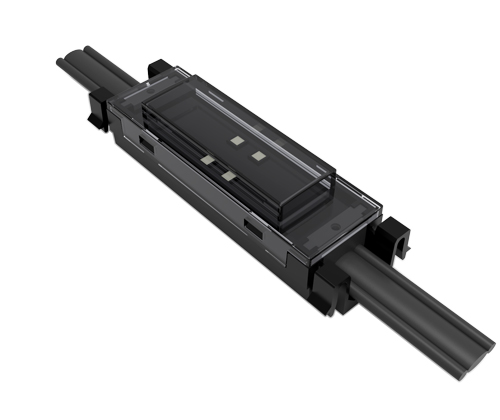

LED Pixel Light EXC-P21AP0

EXC-P21AP0 full-color series consists of professional ultra-narrow chip LED pixel lights specially designed by EXC for outdoor high-rise landscape lighting. It adopts top-level optical vision angle design, super remote multi-color and visual brightness consistency technology, and close-range anti-glare design. Each pixel is a separate four-primary lighting pixel, and each pixel can realize 8/16bit grades grayscale changing; they can be used for extra-large area display of building facades, contour shaping, interior, and exterior surface decoration lighting; the pixel pitch can be customized; the installation methods are various.

The product fixtures withstand the sea salt and harsh environment.UV Resistance and Salt Spray Resistance.


Specification Optical Parameters of LED Pixel Light 2W EXC-P21AP0

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: RGB, RGB+W, etc

  • Beam Angle:  110° degree, Open beam, and other angles optional

  • Source Life: 50,000h


Electrical Parameters of LED Pixel Light 2W EXC-P21AP0

  • Working Voltage: DC 24V

  • Rated Power: Maximum 1.8W


Control Parameters of LED Pixel Light 2W EXC-P21AP0

  • Control Method: DMX512/On Off

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of LED Pixel Light 2W EXC-P21AP0

  • Shell Material: PC

  • Surface Color: Black&White, Other colors optional

  • Structure Size: 80mm x 25mm x 18.5mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 25g


Environmental Parameters of LED Pixel Light 2W EXC-P21AP0

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 65°C

  • Protection rating: IP66

  • Application environment: Outdoor
