Controller EXC-Y880A-SC

EXC-Y880A-SC all-in-one controller is an independent small lighting controlling system EXC-LED design for small lighting systems. It adopts leading ARM technology and optimized algorithm model to reproduce perfect colors; the system has the advantage of simple and reliable wiring and can use directly without external sub-controller. The system software can support all EXC lamps and standard DMX512 lamps.

Features

  • Off-line all-in-one controller, integrate master controller and slave controller and may be directly provided with lights;

  • Support 8-port output, with each port controlling no more than 1,024 pixels;

  • Support Ethernet interface and TCP/IP/UDP data communication protocols;

  • Optional support for multiple GPS/BDS timing synchronization control;

  • Optional support for 4G networking, and remotely issue program files and switch programs through the cloud control platform;;

  • Support RS232 and 485 interface one each, support parameter configuration and third-party device access;

  • Support external third-party sensing device such as door opening detection, water immersion sensor, fire alarm sensor, etc.;

  • Maximum support 60FPS. Support 65536 gray scale;

  • Support standard DMX512/1990 general protocol and DMX512 extension protocol;

  • Support address line with SPI serial lamps;

  • Support three-primary-color independent brightness control to make the precise adjustment of white balance simpler and more effective;

  • Support automatic, timed and preset festival effect play;

  • SD card storage of no more than 32G to preset no more than 99 program files;

  • Support the mixed use of lighting fixtures in different types and protocols, to achieve high compatibility;

  • Be provided with port enhancement type protective circuit to achieve better protection of port;

  • Support all series of EXC products.


Specification

Basic Specification

External Size

249*305*77mm

Shell Material

High quality electro-galvanized steel sheet+power injection

Weight

2kg

Output port

8port

Supported Lights

Support all series of EXC products and standard DMX512 lamps

External Interface

One RS485 interface, One RS232 interface, support MODBUS/RS485 bus protocol, RS232 serial port protocol, support two 5~12V digital switch input;;

Storage Medium

SD card

Communication Port

Fast Ethernet port

Communication Protocol

TCP/IP/UDP/RS485/RS232

Working Condition

Working Temperature

-30°C~50°C

Storage Temperature

-40°C~70°C

Humidity Range

0%-90%

Protection Rating

IP54

Electrical Specification

Signal Connector

Dedicated EXC connector

Working Voltage

AC 220V

Maximum Wattage

20W

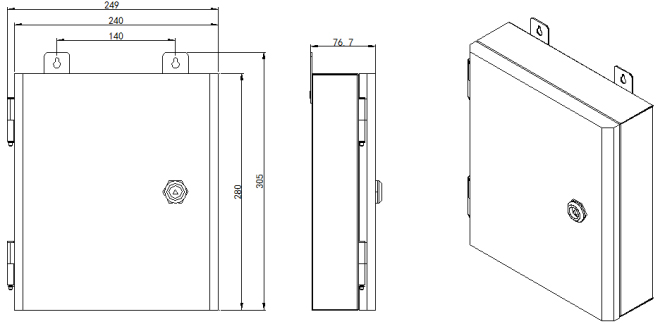

Physical Dimension:



Available Model

Series

Model

Main Features

Working Voltage

Max Wattage

Size

EXC-Y880A

EXC-Y880A-S

All-in-on Controller, 100Mbps Ethernet port,All series of EXC products, Outdoor, 8000 pixels, GPS synchronization, Can be expanded

AC 220V

15W

249*305*77mm

EXC-Y880A-SC

All-in-on Controller, 100Mbps Ethernet port,All series of EXC products, Outdoor, 8000 pixels, GPS synchronization、4G Networking,Distribute programs remotely

AC 220V

20W

249*305*77mm

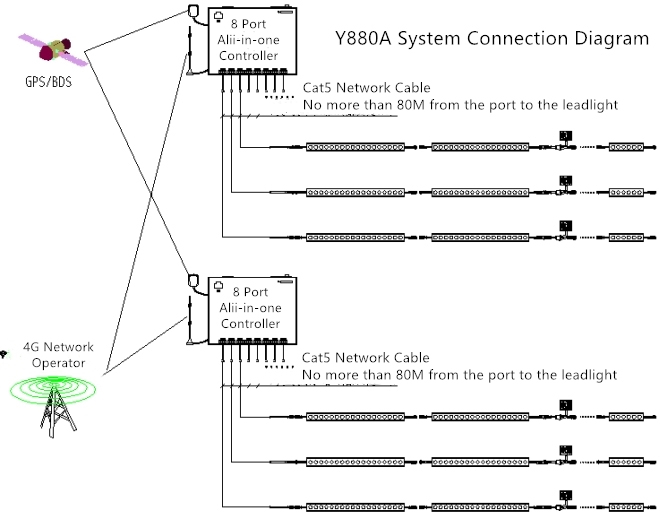

EXC-Y880A-SC Wireless synchronization system connection diagram:
