Controller EXC-M620D

Name: Controller EXC-M620D
Brand: AIKELITE TECHNOLOGY (HK) CO., LIMITED.

EXC-M620D-SPC is the off-line control system we EXC-LED design for medium-scale lighting system,it adopt advanced digital video processing technology ,combined with leading FPGA technology and optimization algorithm model as core,perfectly present the video. With mature network signal transmission technology and distributed cabling system, the system have the advantage of high stability,simple and reliable .The system support standard switch ,EXC-2905T₁ or S880 sub controller and all EXC standard lamps and DMX512 lamps.

Get a quote

Features

Set light control, 4G routing, strong electric gateway, power output and other functions in one
Support strong electric control, remote meter reading, opening and closing detection, etc
Optional to support synchronous control of multiple GPS satellites
Maximum support 60FPS.Support 65536 gray scale.
Support Support DMX512/1900 general protocol and extension DMX512 protocol.
Support independently control of the red,green,blue color.Users will get the mix-white color more effective and easier.
Support automated,timing,preset program files.
SD card storage,support maximum 32G,preset maximum 99 program files.
Support different type of protocol in one system.
Support all series of EXC products.

Specification

Basic Specification
External Size	24014345mm
Shell Material	High quality electro-galvanized steel sheet+power injection+aluminium sheet
Weight	1.2kg
Output port	2个/2Port
Supported Lights	Support all series of EXC products.
Storage Medium	SD card +8G Solid state memory
Communication Port	2100M ，3RS485，2*RS232
Communication Protocol	TCP/IP/UDP、RS485
Other Port	2*dry contact，DC12Voutput，DC5Voutput
Working Condition
Working Temperature	-25°C~60°C
Storage Temperature	-40°C~85°C
Protection Rating	IP30
Working Voltage	AC 220V
Maximum Wattage	10W
Antenna specifications
Cable	60cm
Connector	SMA-J
Protection Rating	IP66
Working Temp	-40°C~85°C
Frequency Range	1561MHz，1575MHz， 1609MHz
Installation method	Magnetic Catche or Adhesive

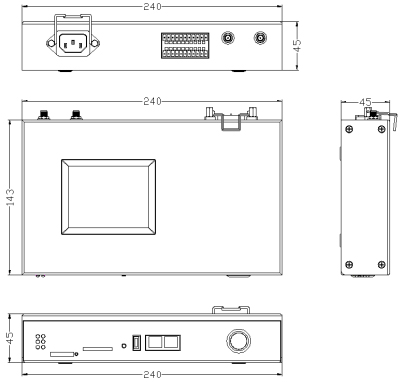

Physical Dimension：

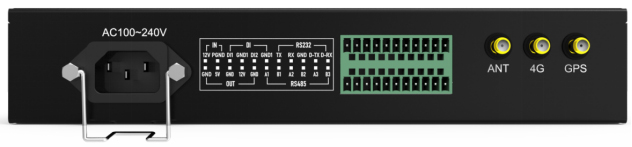

Port

Antennae Size：

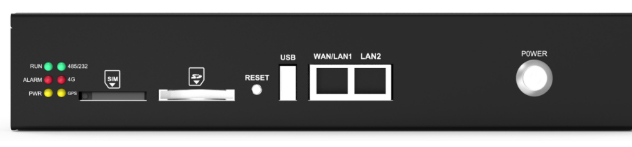

Light	STATE DESCRIPTION
RUN	ON：System crash Flash：The system is started and running properly OFF：The system is not fully started (within 10 seconds after power-on or during restart)
ALARM	ON：The device is faulty Flash：The network port is receiving or sending data OFF：No faulty
PWR	ON：Power in Flash：The power supply is abnormal, for example, the voltage is unstable OFF：No power
485/232	ON：The serial port is properly connected to other devices through signal cables Flash：The serial port is sending and receiving data OFF：No signal cable is connected to the device or the communication with other devices is abnormal through signal cables
4G	ON：Dialing success，in 3G/4G web Slow Flash（2s）：Dialing success，in 2G/2.5G/2.75G web Quick Flash（0.5s）：Dialing OFF：Module not found or dial disabled
GPS	ON：Good signal strength，21～31 Quick Flash（0.5s）：Middle signal strength，11～20 Slow Flash（2s）：Bad signal strength，1～10 OFF：No signal

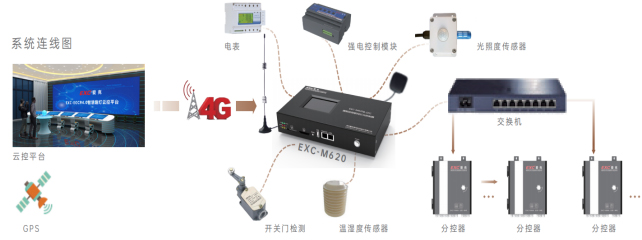

System connection diagram：
